Mold Release FilmCerapeel™ (Silicone)
A high-performance mold release film with a releasable silicone coating on a PET film surface.
Cerapeel™ (silicone) is a high-performance mold release film, wherein a PET film surface is coated with a releasable silicone coating.
- Manufactured using clean equipment with dustproof control.
- Can be used in a wide range of applications, from optics and electronic components to labeling.
- Select from light to heavy grades of release to suit your application.
Features
- Light release type
- Medium release type
- Heavy release type

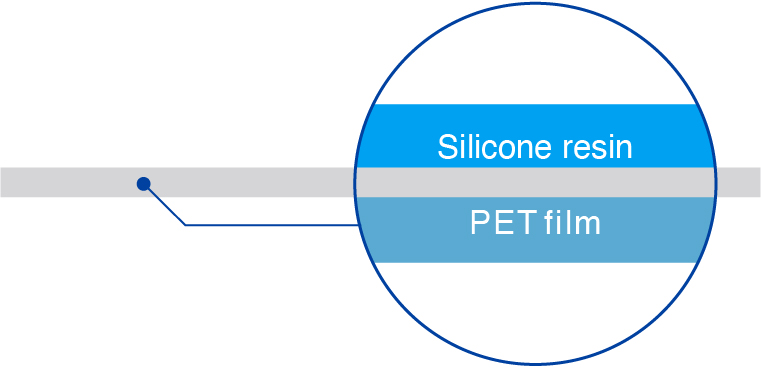

Product Structure Diagram (Example)
Application Examples
- Paper used in the manufacturing process (for optics)
- Paper used in the manufacturing process (ceramic sheets)
- Tapes and other adhesives
- For resin film sheet production
Cerapeel™ being utilized in the manufacturing process for LCD TVs and adhesive tapes, etc.
Usage Examples
Property Data
Properties Table*Values are representative/measured values and are not guaranteed.
| Item | Unit | Cerapeel™(Silicone) | ||||||
|---|---|---|---|---|---|---|---|---|
| WZ | MDA | MFA | TK07 | BKE | BX8A | SY | ||
| Feature | Light release | Light release | Exposure resistance Light release |
Exposure resistance Light release |
Light release | Medium release | Heavy release | |
| 31B Release strength (Ordinary temperature × 24 hours) |
N/50mm | 0.08 | 0.07 | 0.07 | 0.07 | 0.07 | 0.12 | 1.0 |
| 31B Release strength (70°C × 24 hours) |
N/50mm | 0.15 | 0.12 | 0.10 | 0.07 | 0.10 | 0.24 | 2.5 |
| Residual adhesion ratio |
% | 95 | 95 | 95 | 90 | 95 | 95 | 95 |
| Adhesion (Resistance to abrasion by toluene) |
~ | ✔ | ✔ | ~ | ✔ | ✔ | ✔ | |
| Wettability (Mold release surface) |
mN/m | 30 or less | ||||||

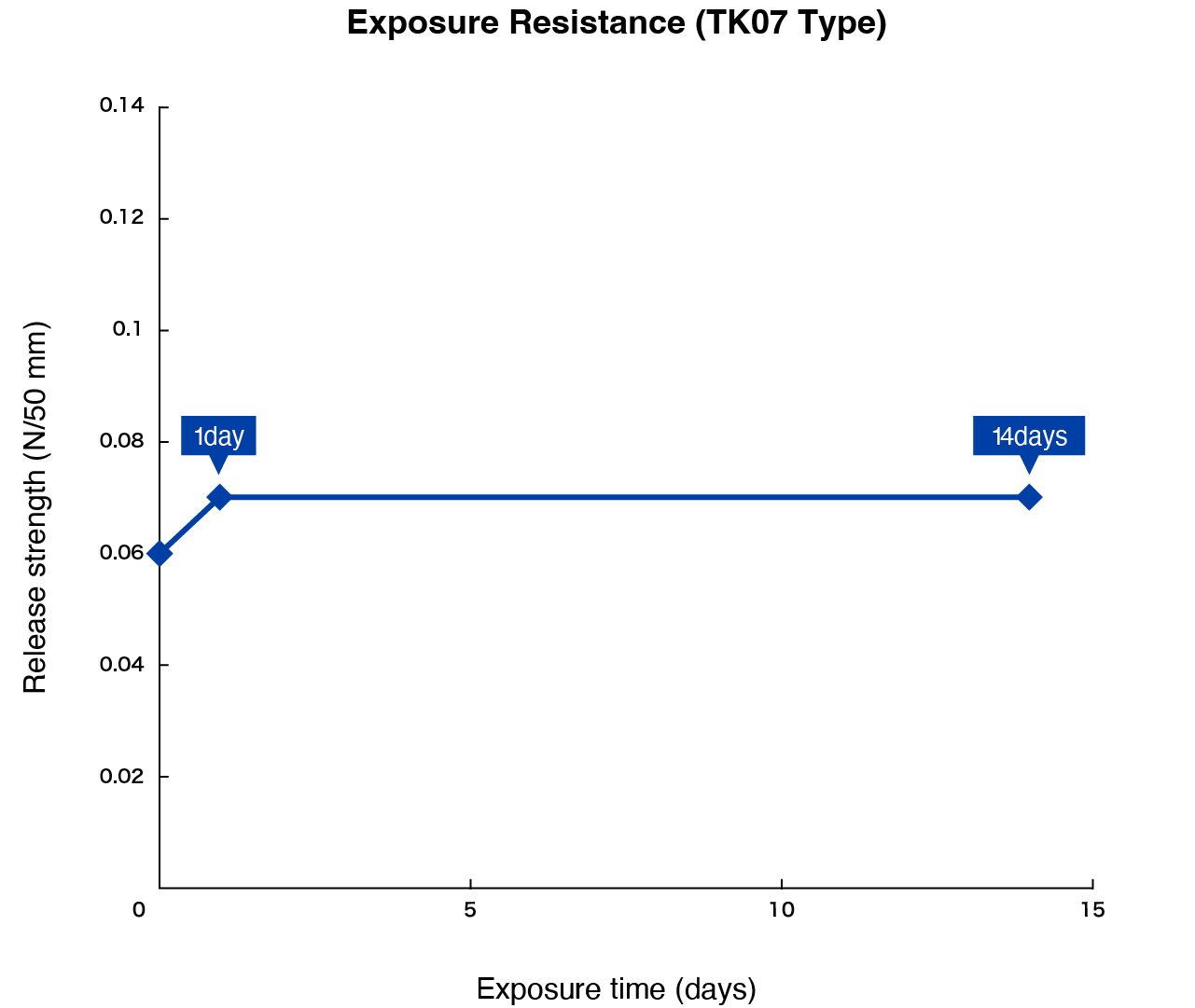

Exposure resistance (Cerapeel™ TK07 type) *Values are representative/measured values and are not guaranteed.
