PPS/PET/PPS Film TLT™

Composite film TLT™ has excellent electrical, heat resistant, and mechanical characteristics, and can be used in areas requiring a higher heat resistance than polyester films.

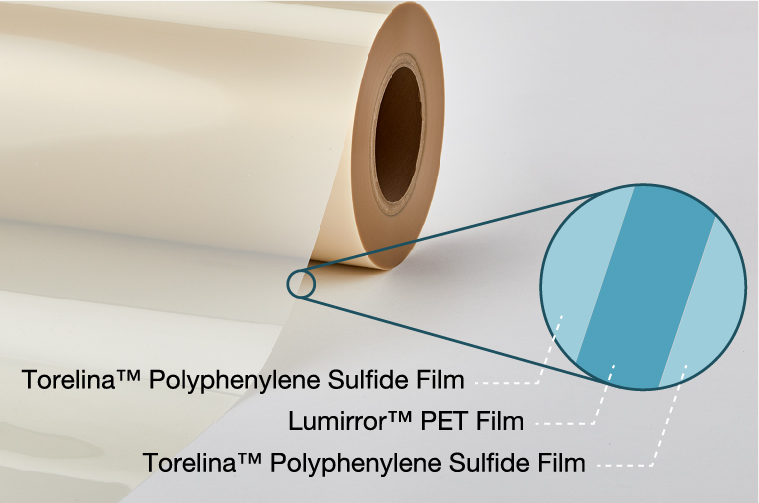

TLT™ consists of Torelina™ polyphenylene sulfide film and PET film, and is a three-layer heat resistant insulating material with the composition shown below. It is widely used in F-type insulation systems as a thin electrical insulation material as it has excellent electrical, heat resistant, and mechanical characteristics, as well as flexibility. Both the films composing TLT™ are biaxially oriented, so it can be used in the same processing and mounting processes (automatic insertion, etc.) as polyester film, and its workability can be greatly improved.

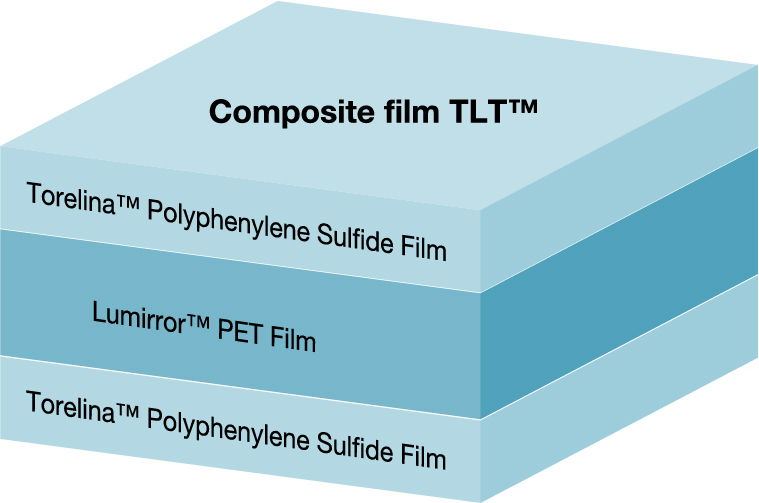

Composite Diagram

Features

  • Insulation
  • Heat resistance
  • Flexibility

Application Examples

  • Motor wedges, slot paper, insoles
  • Phase-to-phase insulation for transformers, coil insulation, core insulation, barrier insulation

TLT™ List

Product Name Nominal Thickness, Type Grades Sub Grades Features
