Olefin-based Release FilmDECOFIT™

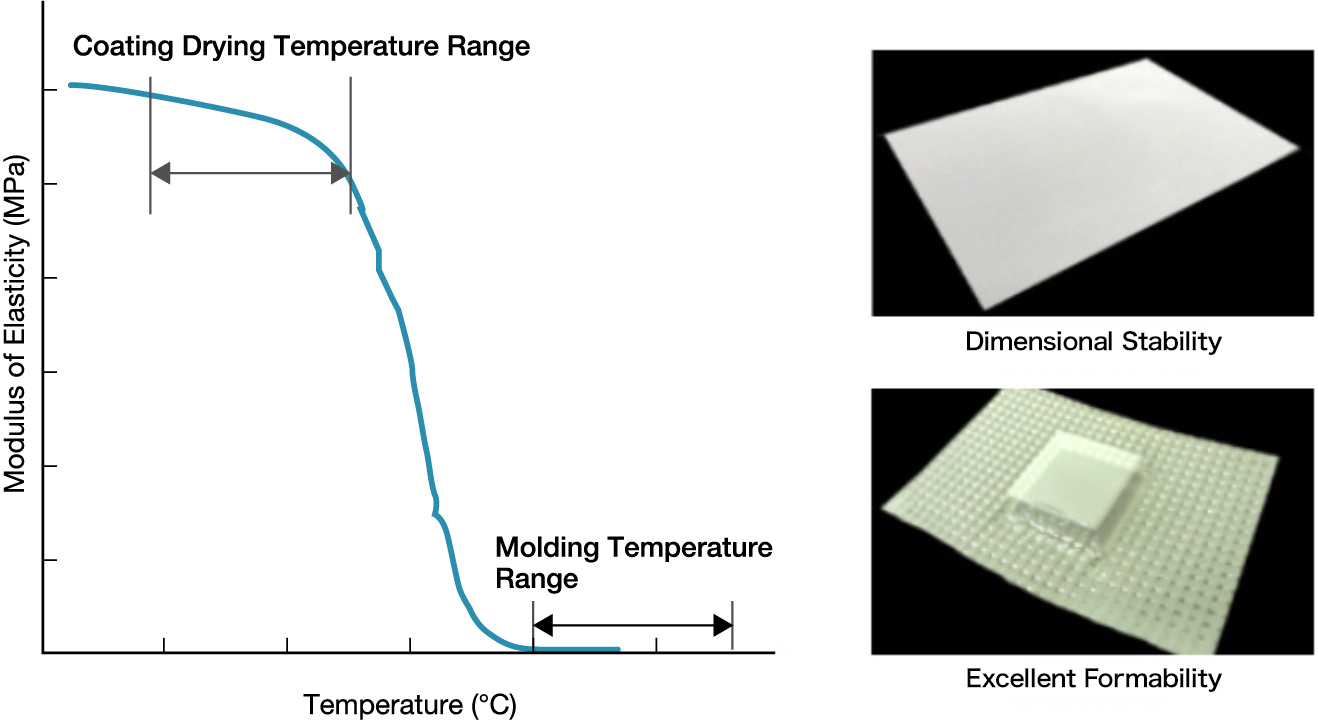

DECOFIT™ is a new film with unique polymer design technology that allows it to achieve both coating and drying processability as well as excellent formability when molding.
Characteristics Comparison Table
| PVC | A-PET | PMMA | ABS | PC | DECOFIT™ | ||
|---|---|---|---|---|---|---|---|
| Coating Heat Resistance | △ | △ | ○ | ○ | ○ | ○ | |
| Low Temperature Range (Up to 120°C) | ○ | ○ | △ | △ | × | ○ | |
| High Temperature Range (120°C and Higher) | － | － | ○ | ○ | ○ | ○ | |
| Easy Release | × | × | × | × | × | ○ | |
| Solvent Resistance | × | × | × | × | × | ○ | |
| High Gloss | △ | ○ | ○ | △ | ○ | ○ | |
Formability

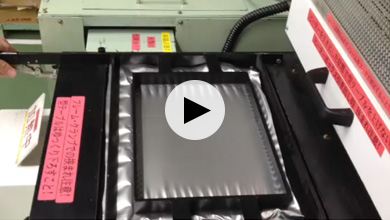

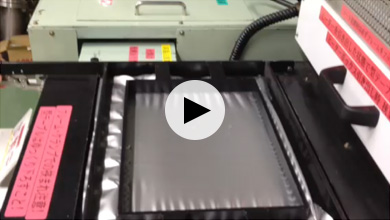

Formability Examples

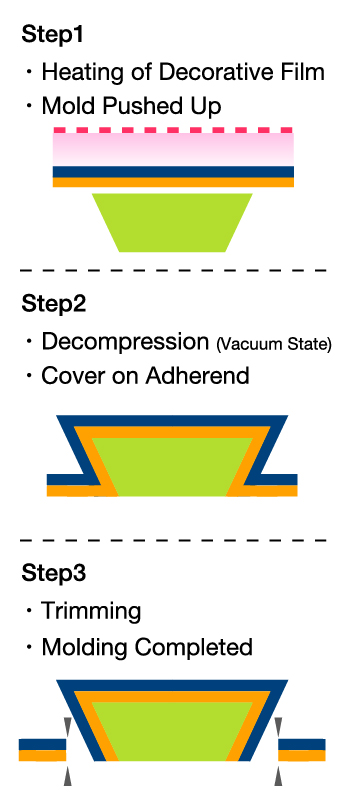

Film Decoration Process

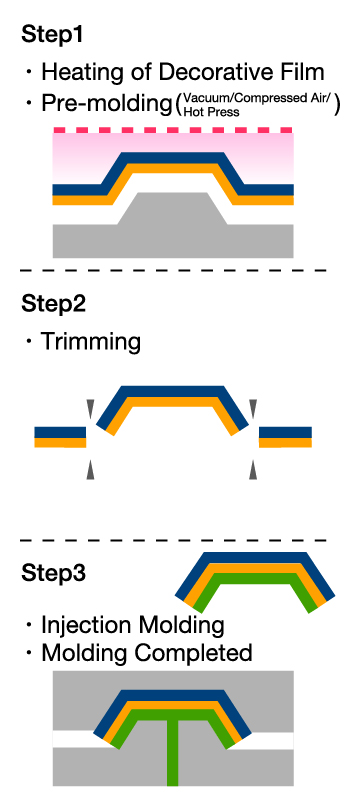

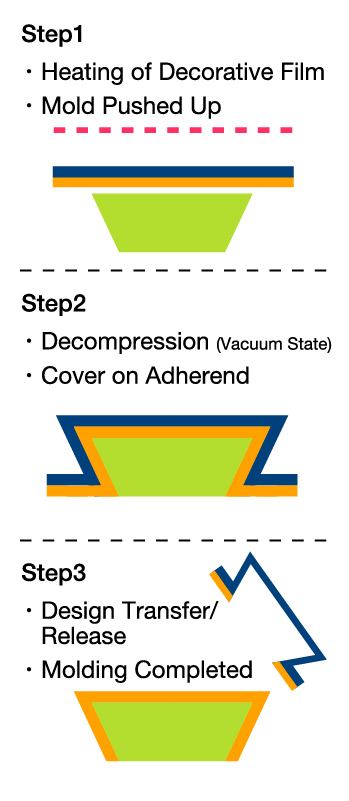

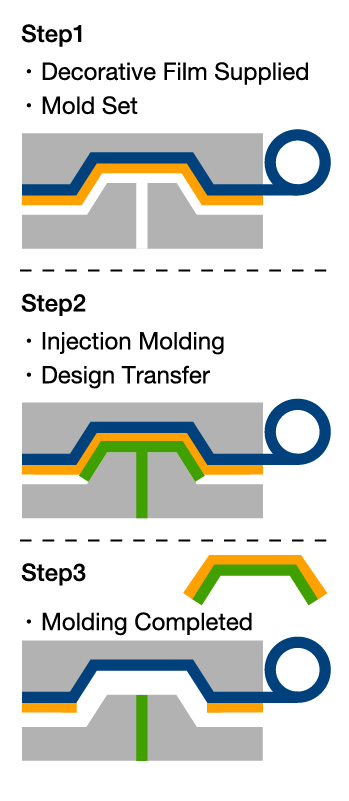

| In-mold Transfer (IMR) | Insert Molding (IML) | 3D Coating Molding (Attachment) | 3D Coating Molding (Transfer) |
|---|---|---|---|

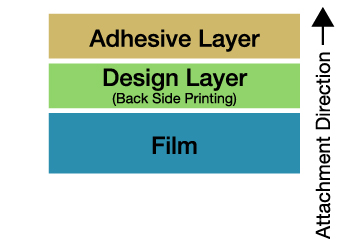

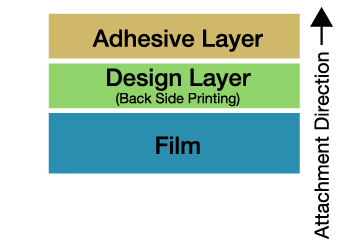

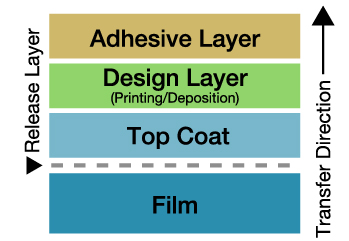

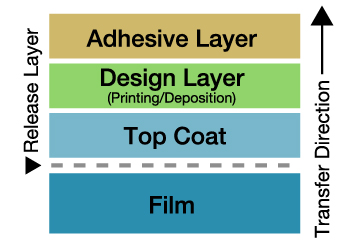

| Decoration Film (Representative Composition) | |||
 |
 |
 |
 |
| Decoration Process | |||
 |
 |
 |
 |
| Shape | |||
| Shallow drawing | Shallow drawing to deep drawing | Shallow drawing to ultra-deep drawing | Shallow drawing to ultra-deep drawing |
| Pre-molding | |||
| No | Yes | No | Yes |
| Object for Decoration | |||
| Resin molded body (mold required) | Resin molded body (mold required) | Adherend (no mold required) | Adherend (no mold required) |
| Other | |||
| Trimming required | Trimming required | Design of adhesive with adherend | |
Standard Lineup
| Standard Grades | Heat Resistant Grades | |||
|---|---|---|---|---|
| Q01CK | Q01DM | Q01DR | Q16CK | |
| Thickness (μ) | 100 | 100 | 100 | 100 |
| Heat Shrinkage (%) MD/TD [Temperature] |
1.3 / 0.6 ［80°C］ |
1.2 / 0.6 ［80°C］ |
1.3 / 0.6 ［80°C］ |
0.4 / 0.3 ［100°C］ |
| Tensile Elongation (%) [Temperature] |
800 ［100°C］ |
800 ［100°C］ |
800 ［100°C］ |
700 ［120°C］ |
| Gloss (%) <Surface Inside Winding> |
95 | 35 | 5 | 95 |

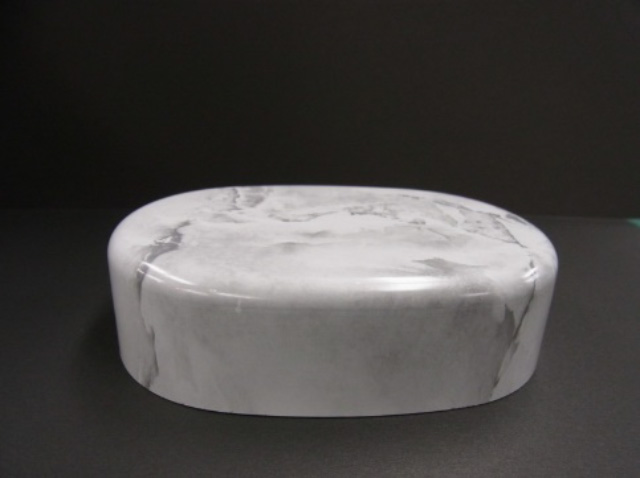

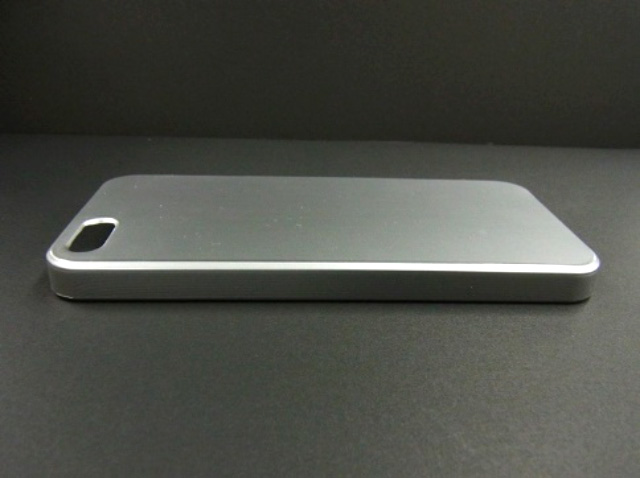

Molded Body Examples (Reference)
Coating Alternative
Plating Alternative
Adding Design to Metal
